Module with parameters 본문
1. Module with parametes (N bit comparator)
< Source >
// Module with parameter
module Module_with_parameters #(parameter N=8)(
input [N-1:0] a, b,
output equal, greater, less);
assign equal = (a == b)? 1 : 0;
assign greater = (a > b)? 1 :0;
assign less = (a < b)? 1 : 0;
endmodule
2. 4 bit Comparator by using module with parameter
< Source >
// Module with parameter
module Module_with_parameters #(parameter N=8)(
input [N-1:0] a, b,
output equal, greater, less);
assign equal = (a == b)? 1 : 0;
assign greater = (a > b)? 1 :0;
assign less = (a < b)? 1 : 0;
endmodule
// 4bit Comparator
module comparator_4bit_by_using_parameter_module (
input [3:0] a, b,
output equal, greater, less);
Module_with_parameters #(.N(4)) comparator(.a(a), .b(b), .equal(equal), .greater(greater), .less(less));
endmodule

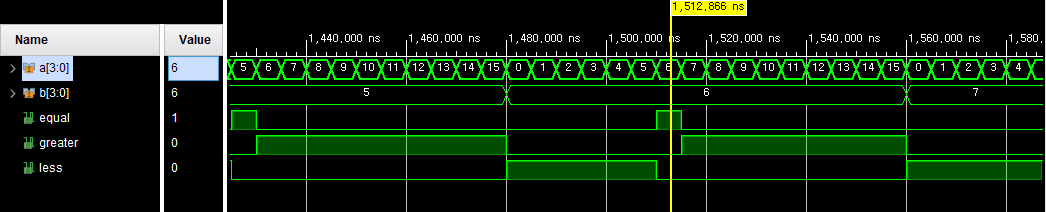

< Simulation >

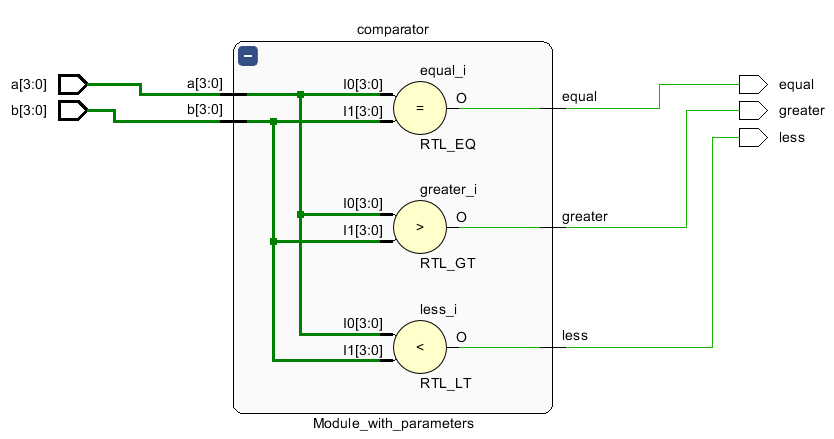

< RTL analysis >

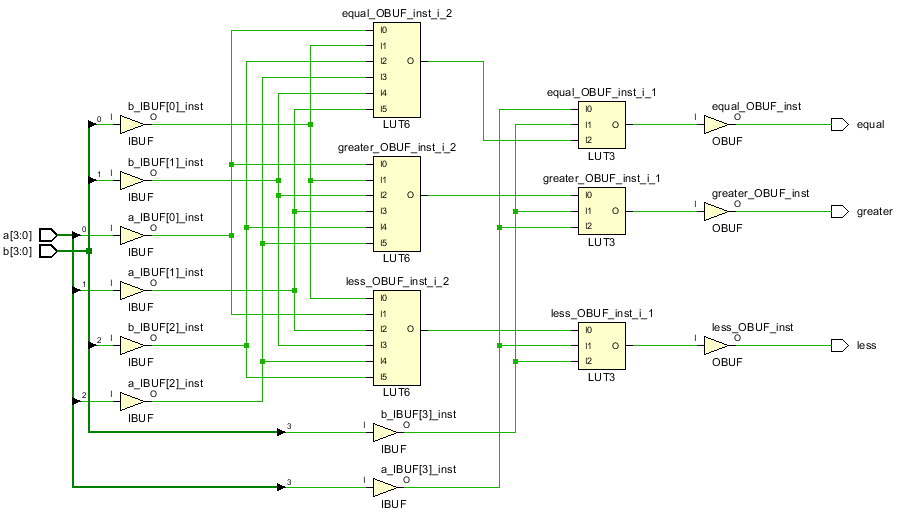

< Synthesis >
