Verilog RTL 설계(7월 12일 - 5, 동기식 업/다운 카운터)

1. Synchronous Up Down Counter (Negative edge trigger)

• Up counter로 동작하며, Down Counter로서 동작할 수 있다.



< Source >

// Syncrhronous Up Down Counter implemented with D Flip Flop
module Synchronous_Up_Down_Counter_Negative(
    input up_down,
    input clk, enable, reset_p,
    output reg [3:0] count );

    // 0 : Up Counting, 1 : Down Counting
    always @(negedge clk or posedge reset_p) begin
        if(reset_p) count = 0;
        else if(enable) begin
            if(up_down) count = count - 1;
            else count = count + 1;
        end
        else count = count;
    end

endmodule



< Simulation >

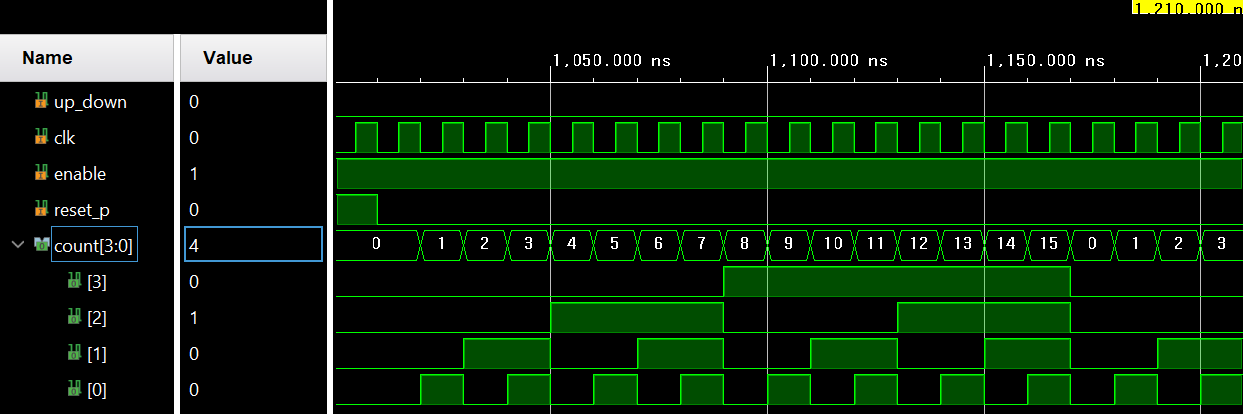

• up_down 변수가 0인 경우 (= Up Counter로 동작하는 경우)

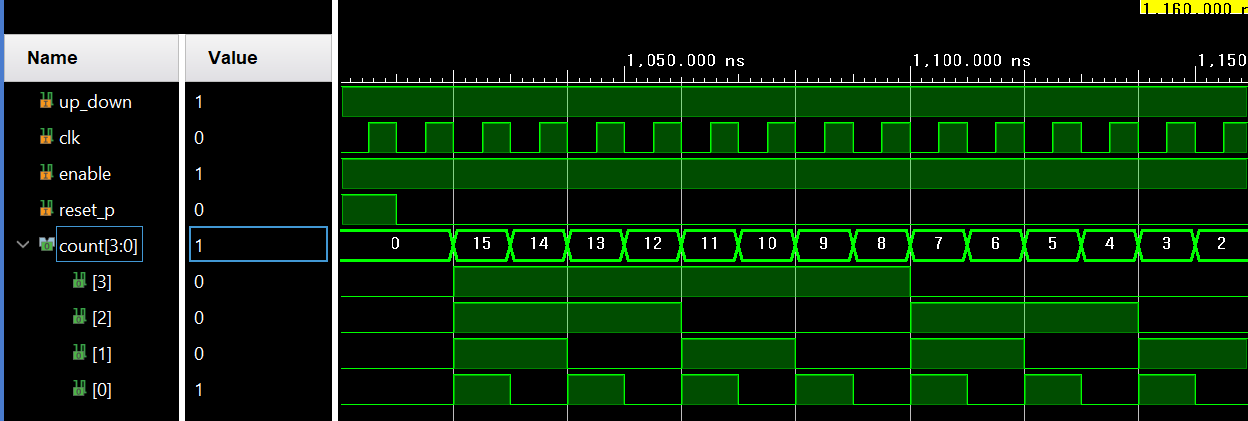

• up_down 변수가 1인 경우 (= Down Counter로 동작하는 경우)

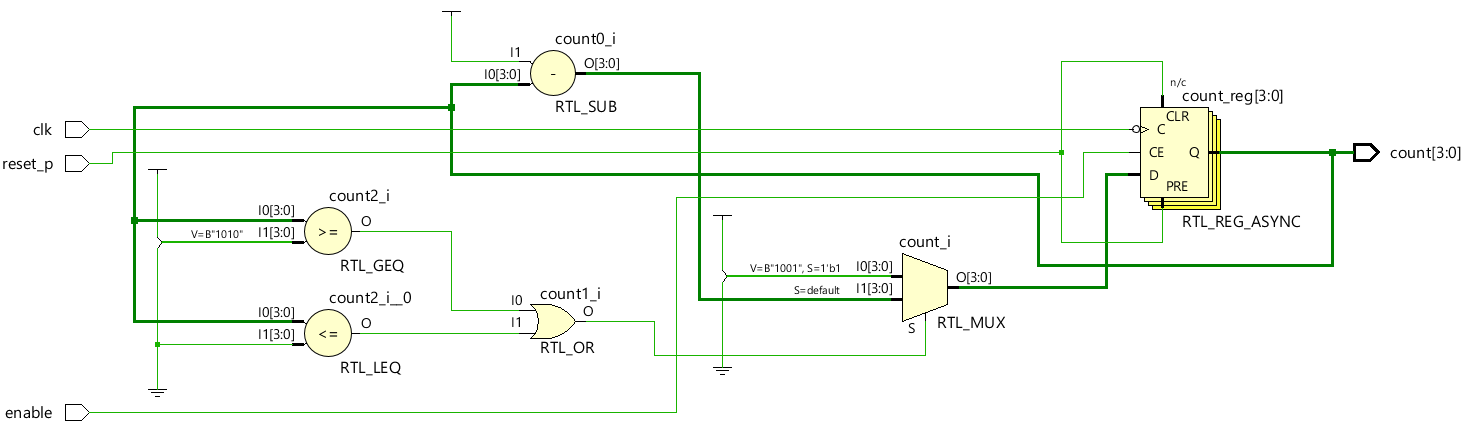

< RTL Analysis >

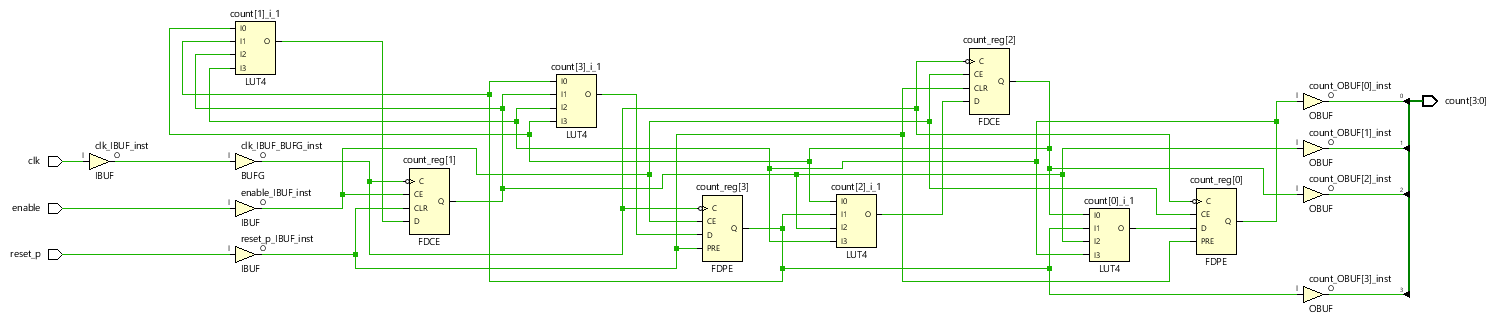

< Synthesis >









2. Synchronous BCD Up Down Counter (Positive edge trigger)



< Source >

// Synchronous BCD Up Down Counter implemented with D Flip Flop (Positive)
module Synchronous_BCD_Up_Down_Counter_Positive(
    input up_down,
    input clk, enable, reset_n,
    output reg [3:0] count );

    // Up Counter : 1, Down Counter : 0
    always @(posedge clk or negedge reset_n) begin
        if(!reset_n) begin
            if(up_down) count = 0;
            else count = 9;
        end
        else if(enable) begin
            if(up_down) begin
                if(count >= 9) count = 0;
                else count = count + 1;
            end
            else begin
                if(count >= 10 | count <=0) count = 9;
                count = count - 1;
            end
        end
        else count = count;
    end

endmodule





< Simulation >

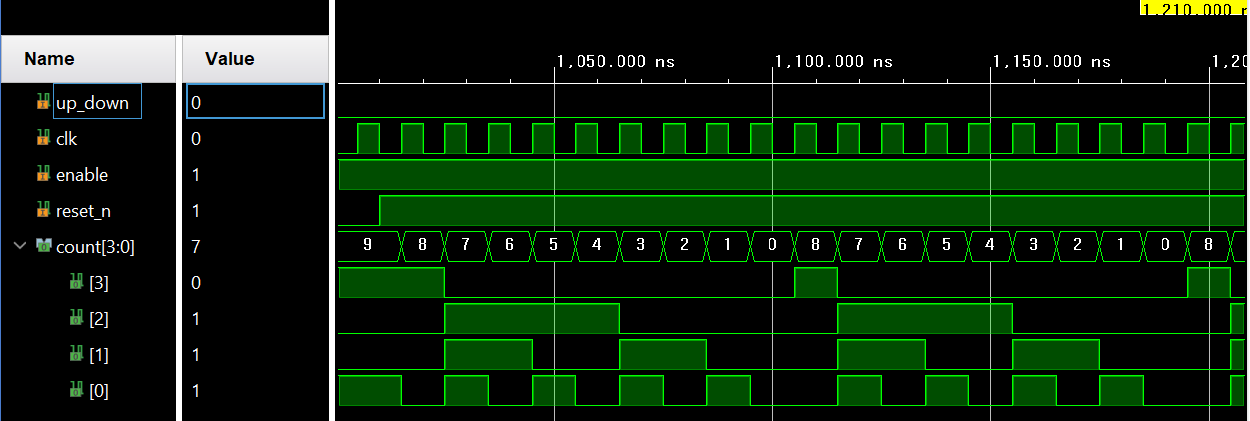

• up_down 변수가 0인 경우 (= Down Counter로 동작하는 경우)

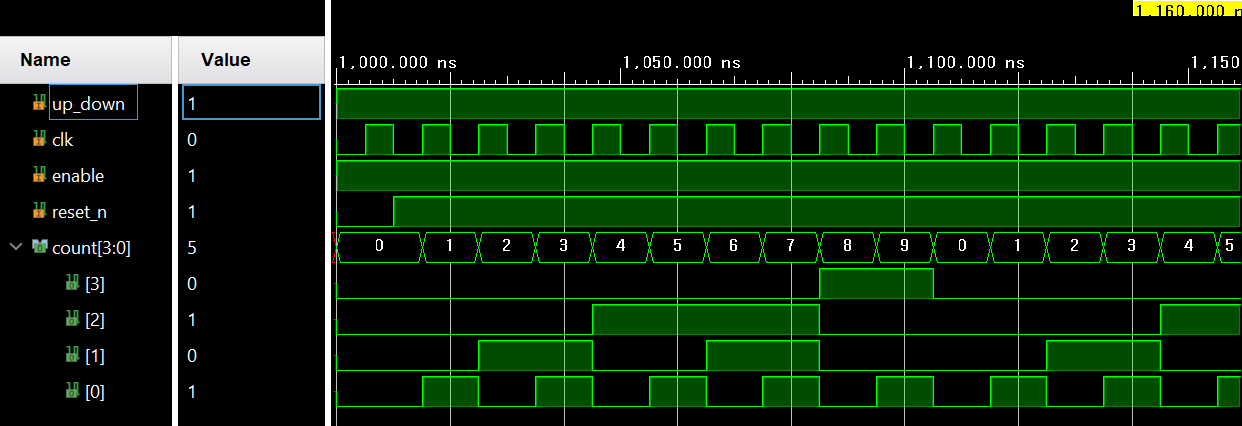

• up_down 변수가 1인 경우 (= Up Counter로 동작하는 경우)

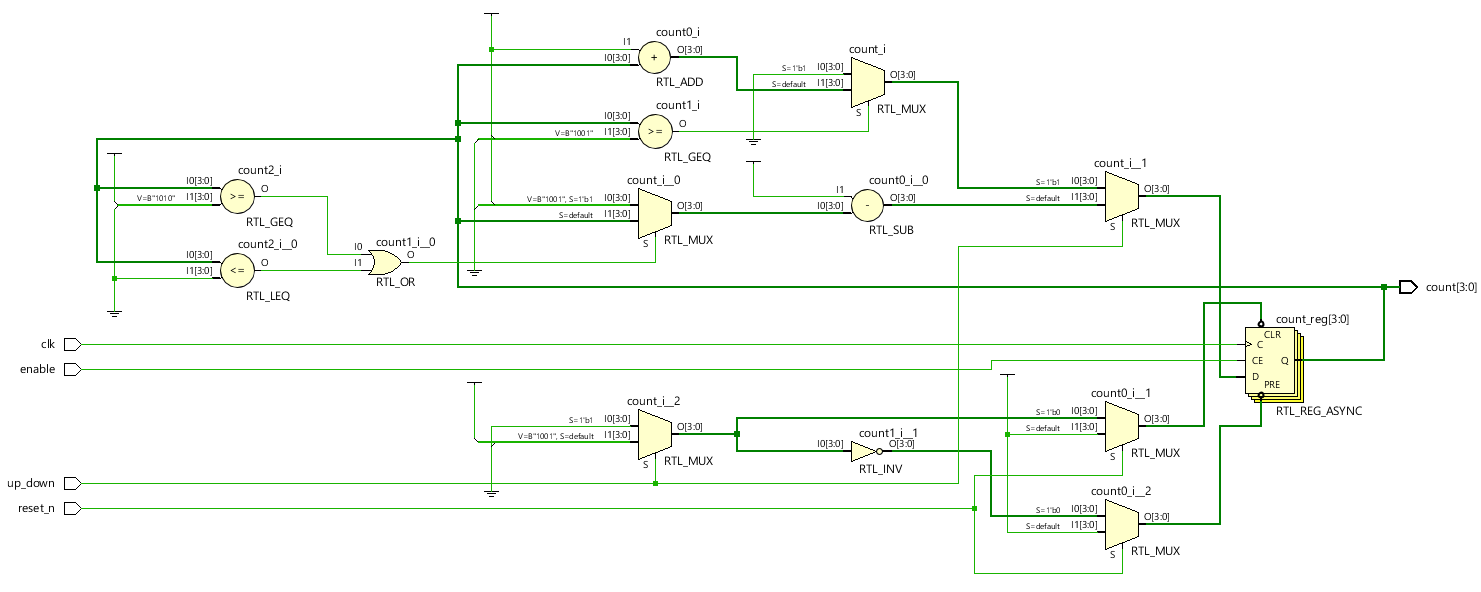

< RTL Analysis >

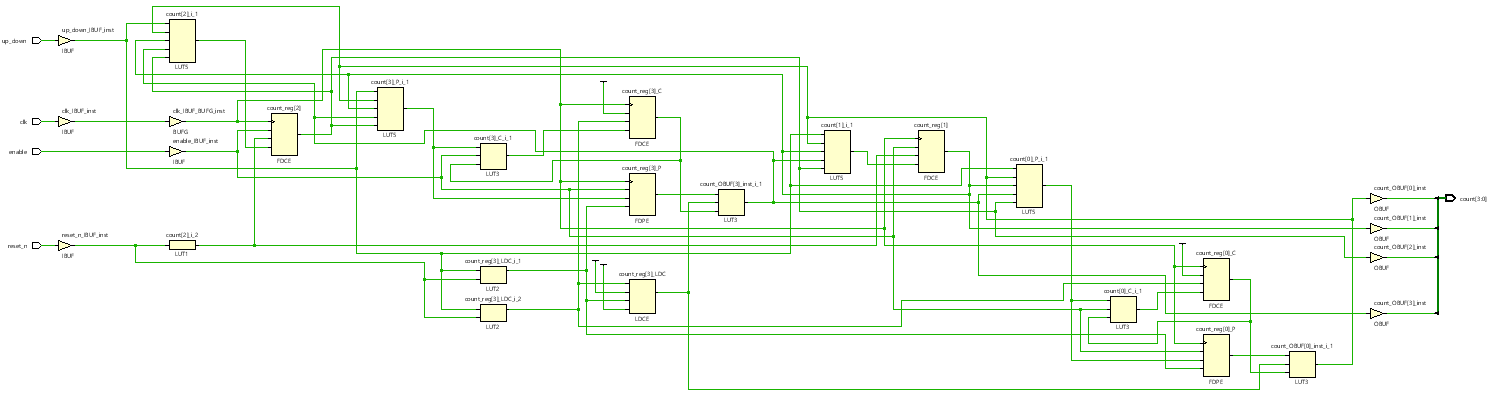

< Synthesis >
